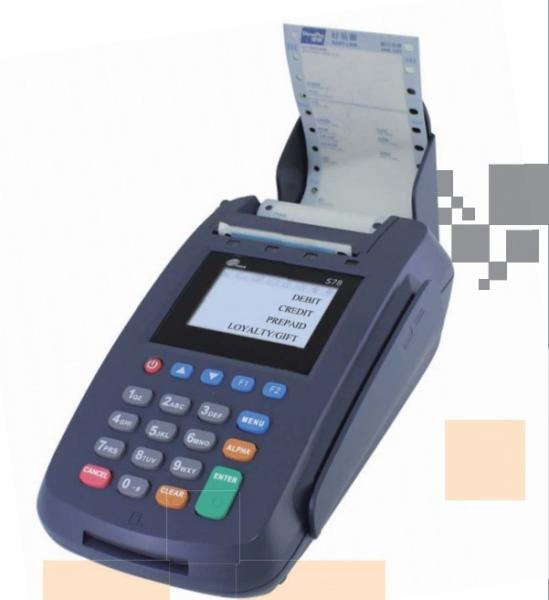

S78 COUNTERTOP PAYMENT TERMINAL
S78 is a unique sprocket printer enabled POS terminal, offering all the performance and security of traditional countertop devices, to merchants with special receipt or voucher printing requirements.
With a powerful 32-bit ARM11 processor, the S78 is ideally suited to both EMV and value-added transactions.
The S78 can be readily adapted to a variety of merchant environments, given the many connectivity options, including Ethernet & GPRS, and the many peripheral ports available.
PCI PTS approved
Sprocket printer enabled
Large memory capacity
Optional contactless card reader
USB connectivity
Supports multiple applications
Processor
32-bit ARM11
Memory
192MB (128MB Flash, 64MB DDR)
Display
128 pixel x 64 pixel LCD, White backlit
Keypad
10 numeric & 9 function keys
Printer
Sprocket printer, Speed: 4 lines / second
Standard paper width: 76mm
Magnetic Card Reader
Track 1 / 2 / 3, bi-directional
Smart Card Reader
1 user card, EMV 2000
Conactless Card Reader(optional)
ISO14443 Type A/B, Mifare ®, Felica
Maximum effective distance up to 4cm
Card Slots
4 SAM Slots
ISO 7816
Communication
Modem:
Sync. (HDLC, up to 9600bps)
Async. (V.92, up to 56Kbps)
Ethernet (optional)
GPRS (optional)
Peripheral Ports
2 x RS232, 1 x PINPad, 1 x Ethernet
1 x Line, 1 x TEL, 1 x mini USB
Security
DUKPT, Master / Session, DES, 3DES
ANSI / ISO9564 format 0, 1, 3
PIN ciphered key algorithm
ANSI X9.9 / X9.19 MAC algorithm
Environmental
0°C to 50°C (32°F to 120°F) operating temperature
10% to 93% relative humidity, non-condensing
-20°C to 70°C (-4°F to 150°F) storage temperature
Voltage
Input: 100-240VAC, 50Hz / 60Hz, 1.5A
Output: 24VDC, 1.8A
Physical
Length: 315mm
Width: 153mm
Height: 126mm
Weight
1300g
